GIGABYTE B850 GAMING WF6 rev. 1.0 matična ploča
SKU PLO03806
Price
25.900 RSD
Only 4 left in stock
Specifikacije
Procesorsko ležište (socket): AMD AM5
Čipset: AMD B850
Grafika: Upotreba grafike iz procesora
Tip memorije: DDR5
Memorijski slotovi: 4
Podržane memorije: 6.000MT/s (O.C.), 7.200MT/s (O.C.), 6.800MT/s (O.C.), 6.600MT/s (O.C.), 6.400MT/s (O.C.), 6.200MT/s (O.C.), 5.200MT/s, 4.800MT/s, 7.600MT/s (O.C.), 5.600MT/s (O.C.), 8.000MT/S (O.C.), 8.200MT/s (O.C.), 5.800MT/s (O.C.), 4.400MT/s, 7.000MT/s (O.C.), 7.400MT/s (O.C.), 7.800MT/s (O.C.), 7.950MT/s (O.C), 7.900MT/s (O.C)
Maksimalna ukupna memorija: 256GB
Ostale osobine: Podrška za Extreme Memory Profile (XMP), Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO)
PCI Express x16 slot: 3x PCI Express 3.0 (x1 mode), 1x PCI Express 5.0 (x16 mode) / 4.0 (x8/x4 modes)
SATA priključci (ukupno): 4
SATA priključci: SATA III 6Gbps
Broj M.2 slotova: 3
Podržani M.2 formati: 1x 2280 / 22110 (podrška za PCIe 4.0 x4/x2 mod), 1x 2280 / 22110 (podrška za PCIe 4.0 x2 mod), 1x 2280 / 22110 (podrška za PCIe 4.0/5.0 x4/x2 mod)
RAID: RAID 0, RAID 1, RAID 10
Žična mreža (LAN): 1000Base-T (Gigabit)
Model: Realtek
Wi-Fi: Da
Wi-Fi standard: IEEE 802.11ax, Realtek Wi-Fi 6 RTL8851BE
Bluetooth: Da
Bluetooth verzija: 5.3
Broj kanala: 2/4/5.1/7.1
Model: Realtek
Napomena: High Definition, Audio Noise Guard, High-End Audio Capacitor

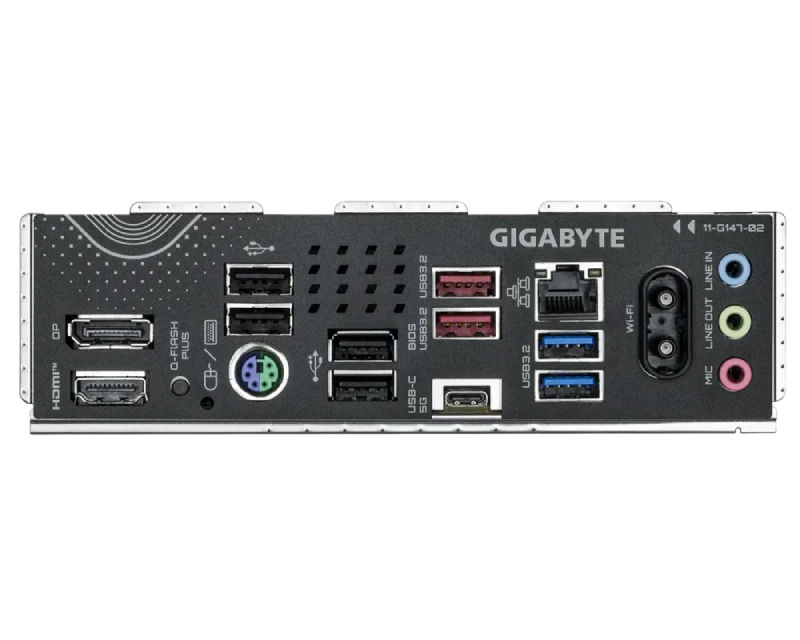

Broj DisplayPort priključaka: 1
DisplayPort priključci: 1x DisplayPort
Broj HDMI priključaka: 1
HDMI priključci: 1x HDMI
PS/2: 1 (tastatura ili miš)
Ukupno USB priključaka: 9
Ukupno USB-C priključaka: 1
USB-A priključci: 2x USB 10Gbps (3.2 Gen 2), 4x USB 2.0, 2x USB 5Gbps (3.2 Gen 1)
USB-C priključci: 1x USB 5Gbps (3.2 Gen 1)
RJ-45 (LAN): 1
Audio: 3x 3.5mm
Ostali priključci: 1 x Q-Flash Plus button, 2x SMA antenna connectors (2T2R)
Naponski priključci: 1x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector
USB-A: 2 x podrška za 1 USB 2.0 port, 1 x podrška za 1 USB 5Gbps port
USB-C: 1 x podrška za 1 USB 5Gbps port
Audio: 1x Front panel audio
Ostali priključci: 1 x Clear CMOS jumper, 4 x SATA 6Gb/s, 1 x RGB LED strip header, 1 x CPU fan header, 1 x front panel header, 1 x system fan/water cooling pump headers, 1 x reset jumper, 3 x system fan headers, 3 x M.2 Socket 3 connectors, 1x CPU fan/water cooling pump header, 3x addressable RGB Gen2 LED strip headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Podržane tehnologije: Q-Flash Plus, Norton Internet Security (OEM verzija), Voltage detection, Detekcija Temperature, Fan speed detection, Fan fail warning, Fan speed control, iTE I/O Controller Chip, AI Overclocking, GIGABYTE Control Center, Smart Fan 6, Water cooling flow rate detection, LAN bandwidth management software, Smart Backup, RGB Fusion, HWiNFO, D5 Bionic Corsa, HyperTune BIOS, X3D Turbo Mode, VRM Thermal Armor Advanced, WIFI EZ-Plug, UC BIOS, PCIe EZ-Latch, Ultra Durable, AIO Fan Control
Format: ATX
Dimenzije: 305mm x 244mm
Reklamacioni period: 36 meseci
Čipset: AMD B850
Grafika: Upotreba grafike iz procesora
Tip memorije: DDR5
Memorijski slotovi: 4
Podržane memorije: 6.000MT/s (O.C.), 7.200MT/s (O.C.), 6.800MT/s (O.C.), 6.600MT/s (O.C.), 6.400MT/s (O.C.), 6.200MT/s (O.C.), 5.200MT/s, 4.800MT/s, 7.600MT/s (O.C.), 5.600MT/s (O.C.), 8.000MT/S (O.C.), 8.200MT/s (O.C.), 5.800MT/s (O.C.), 4.400MT/s, 7.000MT/s (O.C.), 7.400MT/s (O.C.), 7.800MT/s (O.C.), 7.950MT/s (O.C), 7.900MT/s (O.C)
Maksimalna ukupna memorija: 256GB
Ostale osobine: Podrška za Extreme Memory Profile (XMP), Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO)
PCI Express x16 slot: 3x PCI Express 3.0 (x1 mode), 1x PCI Express 5.0 (x16 mode) / 4.0 (x8/x4 modes)
SATA priključci (ukupno): 4
SATA priključci: SATA III 6Gbps
Broj M.2 slotova: 3
Podržani M.2 formati: 1x 2280 / 22110 (podrška za PCIe 4.0 x4/x2 mod), 1x 2280 / 22110 (podrška za PCIe 4.0 x2 mod), 1x 2280 / 22110 (podrška za PCIe 4.0/5.0 x4/x2 mod)
RAID: RAID 0, RAID 1, RAID 10
Žična mreža (LAN): 1000Base-T (Gigabit)
Model: Realtek
Wi-Fi: Da
Wi-Fi standard: IEEE 802.11ax, Realtek Wi-Fi 6 RTL8851BE
Bluetooth: Da
Bluetooth verzija: 5.3
Broj kanala: 2/4/5.1/7.1
Model: Realtek
Napomena: High Definition, Audio Noise Guard, High-End Audio Capacitor
Broj DisplayPort priključaka: 1
DisplayPort priključci: 1x DisplayPort
Broj HDMI priključaka: 1
HDMI priključci: 1x HDMI
PS/2: 1 (tastatura ili miš)
Ukupno USB priključaka: 9
Ukupno USB-C priključaka: 1
USB-A priključci: 2x USB 10Gbps (3.2 Gen 2), 4x USB 2.0, 2x USB 5Gbps (3.2 Gen 1)
USB-C priključci: 1x USB 5Gbps (3.2 Gen 1)
RJ-45 (LAN): 1
Audio: 3x 3.5mm
Ostali priključci: 1 x Q-Flash Plus button, 2x SMA antenna connectors (2T2R)
Naponski priključci: 1x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector
USB-A: 2 x podrška za 1 USB 2.0 port, 1 x podrška za 1 USB 5Gbps port
USB-C: 1 x podrška za 1 USB 5Gbps port
Audio: 1x Front panel audio
Ostali priključci: 1 x Clear CMOS jumper, 4 x SATA 6Gb/s, 1 x RGB LED strip header, 1 x CPU fan header, 1 x front panel header, 1 x system fan/water cooling pump headers, 1 x reset jumper, 3 x system fan headers, 3 x M.2 Socket 3 connectors, 1x CPU fan/water cooling pump header, 3x addressable RGB Gen2 LED strip headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Podržane tehnologije: Q-Flash Plus, Norton Internet Security (OEM verzija), Voltage detection, Detekcija Temperature, Fan speed detection, Fan fail warning, Fan speed control, iTE I/O Controller Chip, AI Overclocking, GIGABYTE Control Center, Smart Fan 6, Water cooling flow rate detection, LAN bandwidth management software, Smart Backup, RGB Fusion, HWiNFO, D5 Bionic Corsa, HyperTune BIOS, X3D Turbo Mode, VRM Thermal Armor Advanced, WIFI EZ-Plug, UC BIOS, PCIe EZ-Latch, Ultra Durable, AIO Fan Control
Format: ATX
Dimenzije: 305mm x 244mm
Reklamacioni period: 36 meseci
