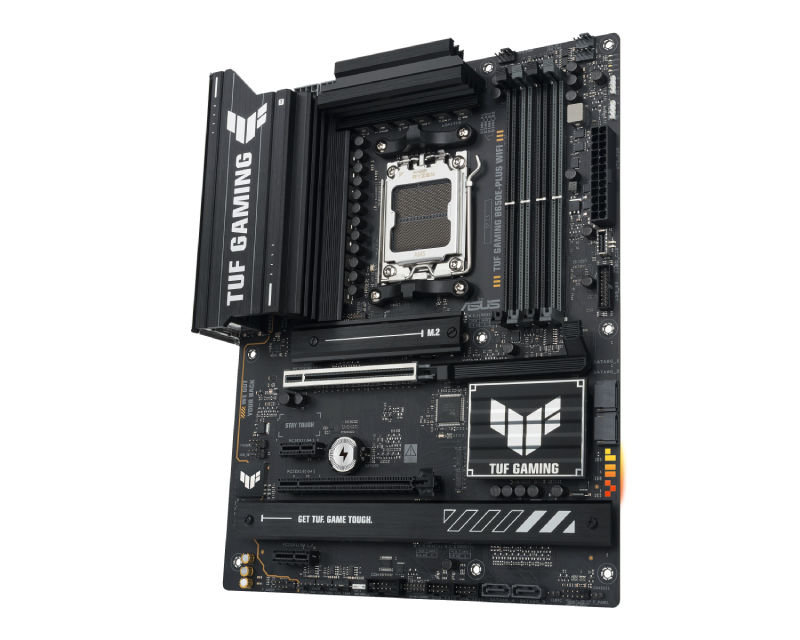

ASUS TUF GAMING B650E-PLUS WIFI matična ploča
SKU PLO03772
Price
24.400 RSD
Specifikacije
Procesorsko ležište (socket): AMD AM5
Čipset: AMD B650
Grafika: Upotreba grafike iz procesora
Tip memorije: DDR5
Memorijski slotovi: 4
Podržane memorije: 8.000+MT/s (O.C.)
Maksimalna ukupna memorija: 256GB
Ostale osobine: Podrška za Unbuffered ECC memoriju, Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP)
PCI Express x16 slot: 1x PCI Express 5.0 (x16 mode), 1x PCI Express 4.0 (x4 mode)
PCI Express x1 slot: 2x PCI Express 4.0
SATA priključci (ukupno): 4
SATA priključci: SATA III 6Gbps
Broj M.2 slotova: 3
Podržani M.2 formati: 1x 2280 (podrška za PCIe 5.0 x4 mod), 1x 2280 (podrška za PCIe 4.0 x4 mod), 1x 2242 / 2260 / 2280 / 22110 (podrška za PCIe 4.0 x4 mod)
RAID: RAID 0, RAID 1, RAID 10, RAID 5
Žična mreža (LAN): 2.5GBase-T (Gigabit)
Model: Realtek
Wi-Fi: Da
Wi-Fi standard: 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Bluetooth: Da
Bluetooth verzija: 5.3
Broj kanala: 8 (7.1)
Model: Realtek ALC1220P
Napomena: High Definition, Audio Shielding, Jack-detection, Multi-streaming, Front Panel Jack-retasking, Premium audio capacitors, Dedicated audio PCB layers, Audio Cover, Unique de-pop circuit, Impedance sense for front and rear headphone outputs, High quality 120dB SNR stereo playback output and 113dB SNR recording input, Internal audio Amplifier
Broj DisplayPort priključaka: 1
Broj HDMI priključaka: 1
Ukupno USB priključaka: 10
Ukupno USB-C priključaka: 1
USB-A priključci: 3x USB 10Gbps (3.2 Gen 2), 6x USB 2.0
USB-C priključci: 1x USB 20Gbps (3.2 Gen 2x2)
RJ-45 (LAN): 1
Audio: 5x 3.5mm
Ostali priključci: BIOS Flashback taster, 1 x Wi-Fi Module
Naponski priključci: 1 x 24 pin Main Power connector, 2x 8-pin +12V CPU Power connectors
USB-A: 2 x podrška za 4 USB 2.0 porta, 1 x podrška za 2 USB 5Gbps porta
USB-C: 1 x podrška za 1 USB 10Gbps port
Audio: 1x Front panel header
Ostali priključci: 1 x 4-pin AIO Pump header, 1 x 4-pin CPU OPT Fan header, 1 x 10-1 pin System Panel header, 1 x 4-pin CPU Fan header, 1 x Clear CMOS header, 3 x Addressable Gen 2 headers, 1 x COM Port header, 4 x 4-pin Chassis Fan headers, 1 x Thunderbolt™ (USB4®) header, 1 x Chassis Intrusion header
Napomena: Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Podržane tehnologije: AURA Creator, AURA Sync, DIGI+VRM, LANGuard, Overvoltage Protection, Q-DIMM, TurboV EVO, ESD Guards, VRM heatsink design, SafeDIMM, ASUS UEFI BIOS EZ Mode, ASUS CrashFree BIOS 3, ProCool, Stainless-Steel Back I/O, BIOS FlashBack button, Q-Antenna, Fan Xpert 4, TUF Gaming CPU-Z, DTS Audio Processing, TUF LANGuard, M.2 Q-Latch, Addressable Gen 2 headers, Pre-mounted I/O shield, SafeSlot, BIOS FlashBack LED, M.2 heatsink, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), DriverHub, Armoury Crate, PC Cleaner, PCIe Slot Q-Release, AI Noise Cancelation, AMD RAIDXpert2 Technology
Format: ATX
Dimenzije: 305mm x 244mm
Pakovanje: 2 x SATA 6Gb/s kabl, 1 x Quick Start Guide, 1 x TUF GAMING sticker, 2 x M.2 gumice, 1 x ASUS WiFi Q-Antenna
Reklamacioni period: 36 meseci
Čipset: AMD B650
Grafika: Upotreba grafike iz procesora
Tip memorije: DDR5
Memorijski slotovi: 4
Podržane memorije: 8.000+MT/s (O.C.)
Maksimalna ukupna memorija: 256GB
Ostale osobine: Podrška za Unbuffered ECC memoriju, Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP)
PCI Express x16 slot: 1x PCI Express 5.0 (x16 mode), 1x PCI Express 4.0 (x4 mode)
PCI Express x1 slot: 2x PCI Express 4.0
SATA priključci (ukupno): 4
SATA priključci: SATA III 6Gbps
Broj M.2 slotova: 3
Podržani M.2 formati: 1x 2280 (podrška za PCIe 5.0 x4 mod), 1x 2280 (podrška za PCIe 4.0 x4 mod), 1x 2242 / 2260 / 2280 / 22110 (podrška za PCIe 4.0 x4 mod)
RAID: RAID 0, RAID 1, RAID 10, RAID 5
Žična mreža (LAN): 2.5GBase-T (Gigabit)
Model: Realtek
Wi-Fi: Da
Wi-Fi standard: 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Bluetooth: Da
Bluetooth verzija: 5.3
Broj kanala: 8 (7.1)
Model: Realtek ALC1220P
Napomena: High Definition, Audio Shielding, Jack-detection, Multi-streaming, Front Panel Jack-retasking, Premium audio capacitors, Dedicated audio PCB layers, Audio Cover, Unique de-pop circuit, Impedance sense for front and rear headphone outputs, High quality 120dB SNR stereo playback output and 113dB SNR recording input, Internal audio Amplifier
Broj DisplayPort priključaka: 1
Broj HDMI priključaka: 1
Ukupno USB priključaka: 10
Ukupno USB-C priključaka: 1
USB-A priključci: 3x USB 10Gbps (3.2 Gen 2), 6x USB 2.0
USB-C priključci: 1x USB 20Gbps (3.2 Gen 2x2)
RJ-45 (LAN): 1
Audio: 5x 3.5mm
Ostali priključci: BIOS Flashback taster, 1 x Wi-Fi Module
Naponski priključci: 1 x 24 pin Main Power connector, 2x 8-pin +12V CPU Power connectors
USB-A: 2 x podrška za 4 USB 2.0 porta, 1 x podrška za 2 USB 5Gbps porta
USB-C: 1 x podrška za 1 USB 10Gbps port
Audio: 1x Front panel header
Ostali priključci: 1 x 4-pin AIO Pump header, 1 x 4-pin CPU OPT Fan header, 1 x 10-1 pin System Panel header, 1 x 4-pin CPU Fan header, 1 x Clear CMOS header, 3 x Addressable Gen 2 headers, 1 x COM Port header, 4 x 4-pin Chassis Fan headers, 1 x Thunderbolt™ (USB4®) header, 1 x Chassis Intrusion header
Napomena: Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Podržane tehnologije: AURA Creator, AURA Sync, DIGI+VRM, LANGuard, Overvoltage Protection, Q-DIMM, TurboV EVO, ESD Guards, VRM heatsink design, SafeDIMM, ASUS UEFI BIOS EZ Mode, ASUS CrashFree BIOS 3, ProCool, Stainless-Steel Back I/O, BIOS FlashBack button, Q-Antenna, Fan Xpert 4, TUF Gaming CPU-Z, DTS Audio Processing, TUF LANGuard, M.2 Q-Latch, Addressable Gen 2 headers, Pre-mounted I/O shield, SafeSlot, BIOS FlashBack LED, M.2 heatsink, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), DriverHub, Armoury Crate, PC Cleaner, PCIe Slot Q-Release, AI Noise Cancelation, AMD RAIDXpert2 Technology
Format: ATX
Dimenzije: 305mm x 244mm
Pakovanje: 2 x SATA 6Gb/s kabl, 1 x Quick Start Guide, 1 x TUF GAMING sticker, 2 x M.2 gumice, 1 x ASUS WiFi Q-Antenna
Reklamacioni period: 36 meseci
